Products

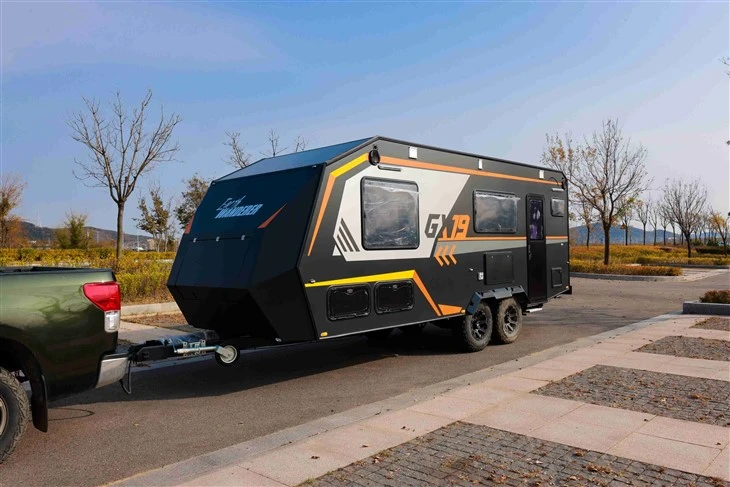

19ft RV Travel Trailer
the 19ft RV Travel Trailer to be towed by car or pickup trucks, with the front of the trailer extending over the bed of the truck. This category offers the greatest potential for trailer size, thanks to the load capacity of the tow vehicle.
Features
About Travel Trailer
19ft RV Travel Trailers are the most popular type of non-motorized RV. They come in all sizes, including tiny shaped models with a chuckwagon kitchen in the rear to a complete house-on-wheels with multiple slideouts and residential-sized appliances. The modern travel trailer employs a hitch secured to the frame of your tow vehicle, along with specialized hardware to make towing safe and easy.
About Travel Trailer
the 19ft RV Travel Trailer to be towed by car or pickup trucks, with the front of the trailer extending over the bed of the truck. This category offers the greatest potential for trailer size, thanks to the load capacity of the tow vehicle. RV modules that slide into the bed of a pickup truck, and literally go anywhere the truck can go.
RV Travel Trailer Choose
Choosing the proper combination of truck and trailer is elemental to realizing the freedom and wonder of travel in an RV. RV trailers have many benefits as well as some concessions that need to be considered and fitted to each individual situation. If done properly and with understanding, travel can be a wonder filled adventure.
RV Travel Trailer Choose
RV Trailers range in size from a few hundred pounds to more than 15 tons, so there is no lack of options from which to choose. There are two general types of RV Trailers. They are based on the type of hitch used to connect the trailer to the vehicle and are generally associated with the size of the trailer.
RV Trailer parameters
| Body color | Wheel track | Max payload | Rim | Brake |
| Black | 1810mm | 500kg | 16'' Aluminium alloy | Electric brakes system |
| Exterior total dimension | Minimum ground clearance | Tow ball weight | Trailer frame | Rim |
| L8025mm×W2450mm×3050mm | 320mm/450mm | 290kg | High strength steel, welded, light weight | Aluminium alloy casting, 1.5t |
| Body dimension | Tare weight | Girder system | Suspension | Tyre |
| L6720mm×W2300mm×2220mm | 2750kg | Low alloy high strength steel welding type | Independent suspension | 265/75R16, off road decorative pattern tyres |
| Hitch | Body material | Passenger door | Skylight | Ventilation |
| Off-road hitch, 3500kg | Lightweight high quality sanwich panel | Special door for RV with privacy screen | Skylight with wraparound light panels, 960×665 | Exhaust, frequency conversion air conditioner |
| Couch | Floor | Bathroom | Pantry cupboards | Refrigerator |
| 1100×600, black PU cushion | Floor leather | Dry wet depart; one piece molded fiberglass bathroom | High-gloss panels,branded hardware | Thetford N4175, 3 energy, 169L |
| Folding table | Sink | Kitchen benchtop | Power outlet | Control system |
|
Outdoor: 850×450, aluminium table Indoor: pneumatic lifting table |
Sink with water tap and draining board |
Outdoor: sink and stove Indoor: Thetford K1520 |
External 240V AC power input socket Inside/toilet/sofa booth/cabinet/AC/DC socket |
LCD touch control system |
| Laundry | Air conditioner | Water inlet | Gas valve | Heater |
| WINIA GWM3-30CWSK 3 kg laundry | Dometic CK36HXOXRI frequency conversion air conditioner,serie Harrier Inverter | Gravity water inlet and pressure water inlet | Gas anti-collision pressure reducing valve | Gas heater, Truma E2400 |
As trailers increase in size there is another way to connect or hitch the tow vehicle and trailer. The hitching position moves from the bumper area towards the center of the vehicle, usually near the center of the bed of the pickup truck. This is called a fifth wheel hitch and supports heavier weights. Gooseneck hitches are also sometimes used for heavier trailers and the hitching position is also located near the center of the bed of the pickup truck.
When attached, the tow vehicle and trailer are referred to as a combination vehicle. The tow vehicle may often be a passenger vehicle that one drives daily like a pickup truck, SUV, or even a car. Despite the familiarity with the regularly used tow vehicle, once a trailer is attached, the combination vehicle is significantly different. New skills and techniques need to be learned and this can sometimes be difficult because driving the tow vehicle gives the illusion that nothing is different from regular daily driving. The skill and responsibility of the 19ft RV Travel Trailer owner is elevated.
Hot Tags: 19ft rv travel trailer, China 19ft rv travel trailer manufacturers, factory
