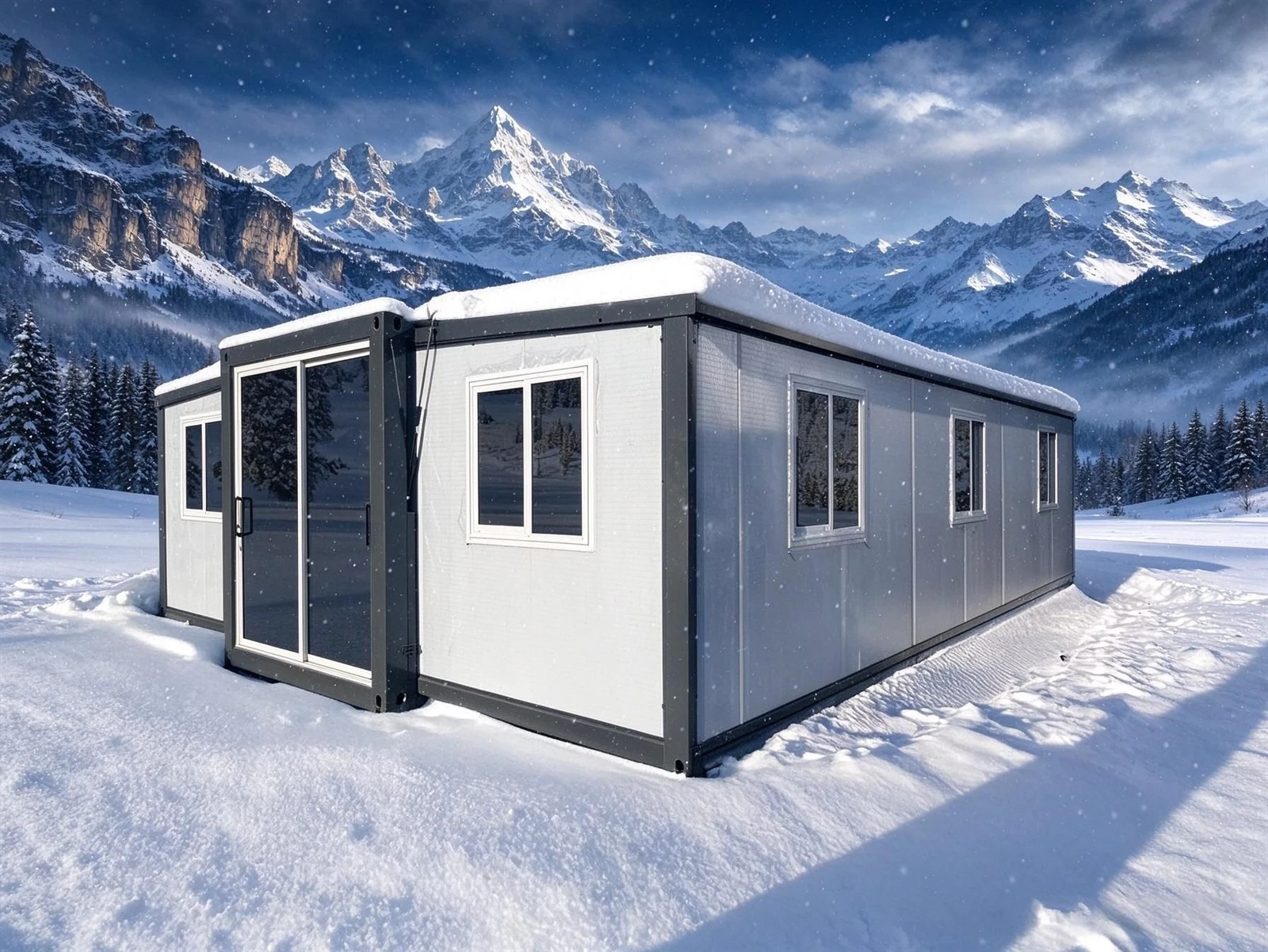

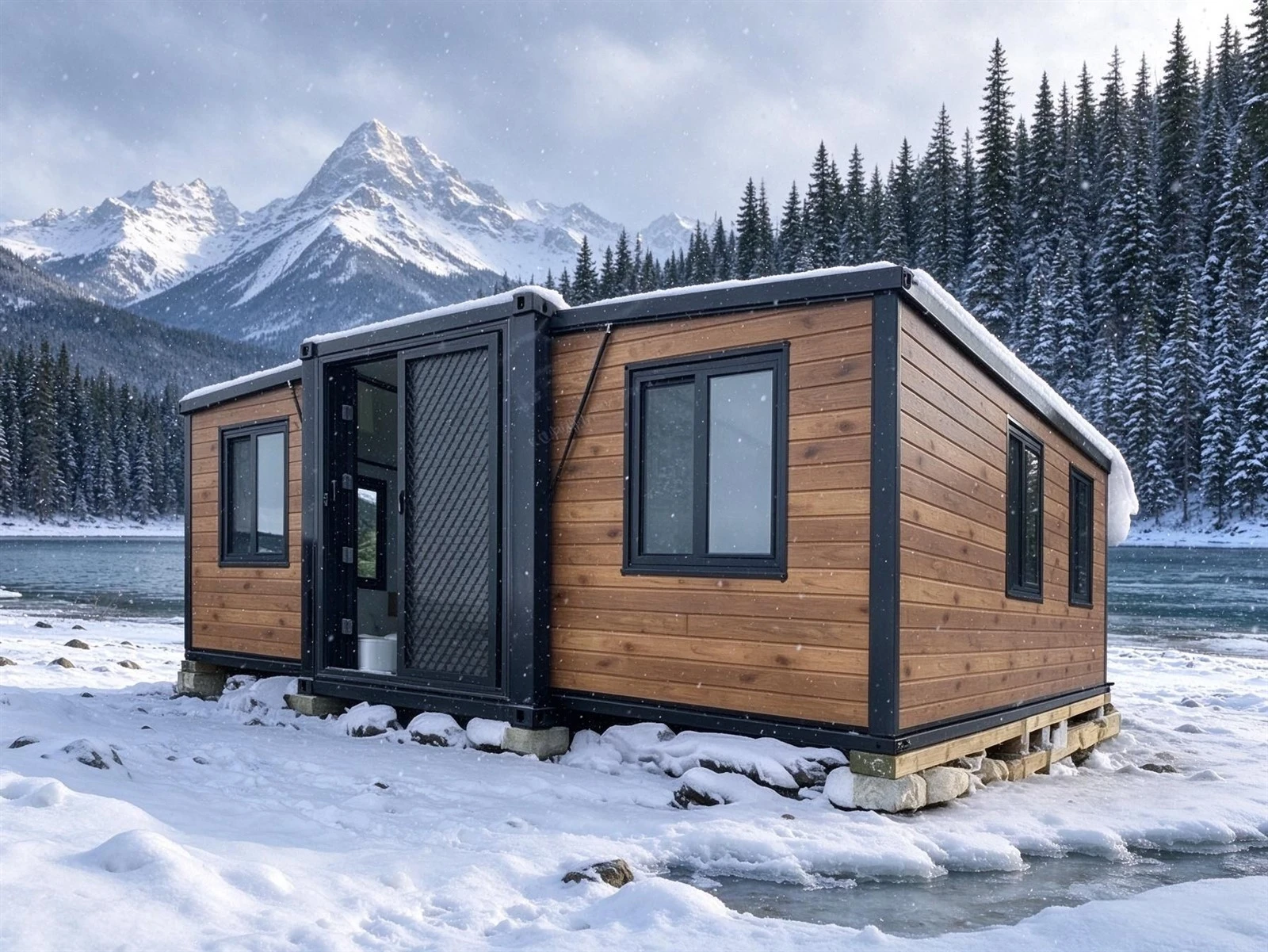

Cold-proof Folding Container House

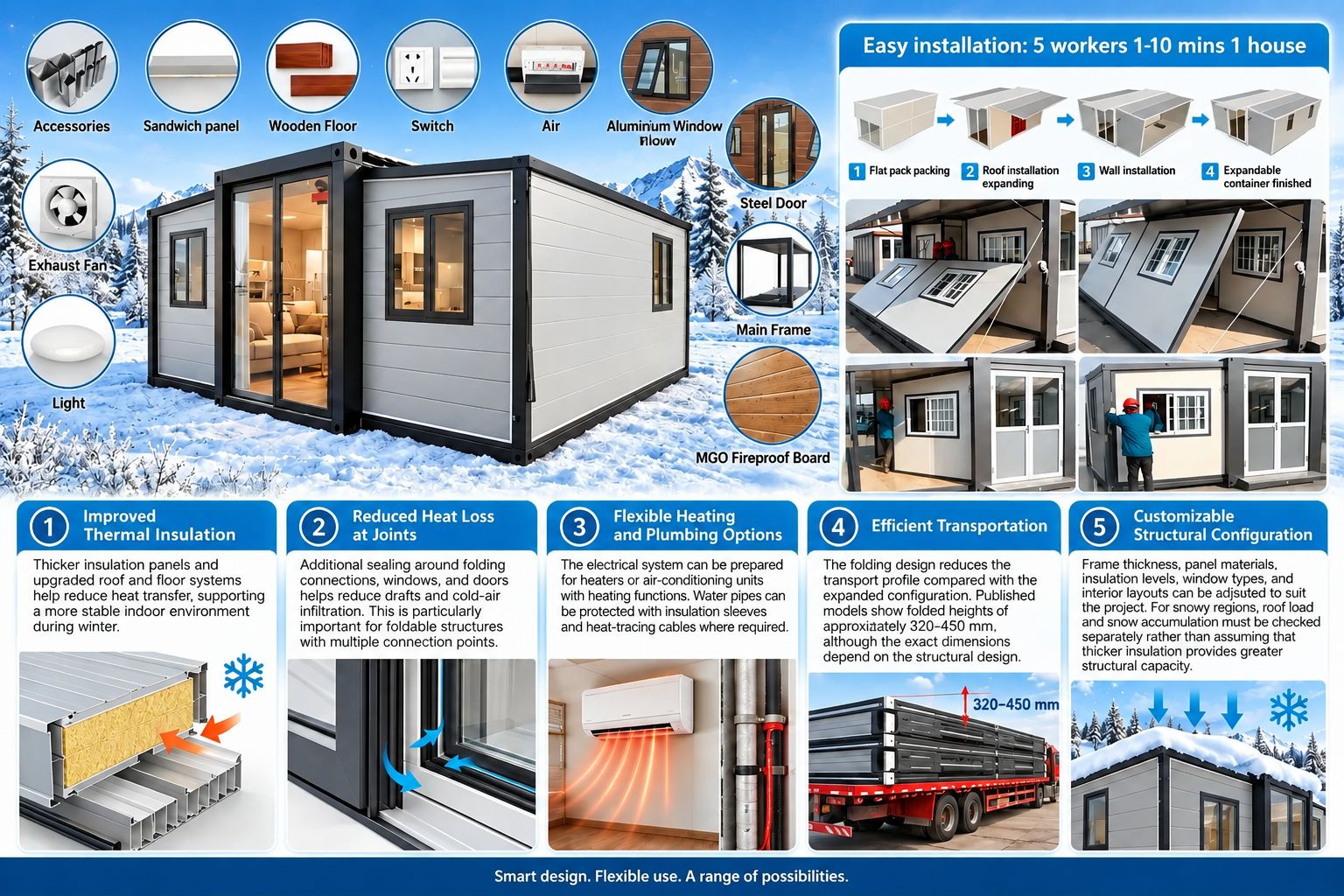

High-Performance Insulated Wall Panels

Different insulation materials can be selected according to the project's climate, fire requirements, and budget.

Rock Wool Sandwich Panels

Rock wool is a suitable option for projects where non-combustible insulation is important. Higher-density panels with increased thickness can be selected for colder environments.

PU / PIR Insulated Panels

Polyurethane and polyisocyanurate panels offer relatively low thermal conductivity and can provide good insulation performance with less thickness. Their fire performance should be checked against the specific product certification.

EPS Sandwich Panels

EPS panels offer a lightweight and economical insulation solution for general temporary buildings and moderate winter conditions.

Roof and Floor Insulation

Heat can escape through the roof and floor as well as the walls. For colder climates, the roof can be upgraded with 100–120 mm insulation, while the floor can incorporate XPS insulation, rock wool, or a composite insulation system. The floor structure should also include appropriate moisture protection and sealing.

Airtight Folding Connections

The folding joints are important areas to consider because gaps can allow cold air and moisture to enter. Optional sealing measures include:

Weather-resistant rubber gaskets

Insulated sealing strips around folding joints

PU foam sealing at suitable connection gaps

Insulated door frames and thresholds

Sealed window frames and roof connections

Interior and Utility Configuration

The interior can be customized with bedrooms, bunk beds, wardrobes, desks, kitchens, and bathrooms. Electrical wiring, sockets, lighting, and heating provisions can be arranged according to the destination country's electrical standards.

For locations where temperatures fall below freezing, water supply and drainage pipes should be insulated or heat-traced where necessary. Plumbing should also be designed to allow drainage and winter shutdown when the building is unoccupied.





Parameter	Standard / Optional Configuration
Product Type	Cold-weather folding container house
Typical Model	20ft folding container house
Expanded Size	Approx. 5,800–5,900 × 2,480–2,500 × 2,500–2,560 mm
Folded Size	Approx. 5,800–5,900 × 2,480–2,500 × 320–450 mm
Main Frame	Galvanized steel
Steel Grade	Q235 / Q235B or project-specific equivalent
Steel Thickness	Common reference: 2.0–2.5 mm; reinforcement optional
Wall Insulation	Rock wool / PU / PIR / EPS
Wall Thickness	50 / 75 / 100 mm; thicker options available
Roof Insulation	75 / 100 / 120 mm reference options
Floor Insulation	50 mm XPS or composite insulation options
Windows	UPVC or thermal-break aluminum, double glazing optional
Door	Insulated steel door with weather seals
Folding Joint	Weather-resistant gasket and optional additional sealing
Floor Board	Cement fiber board / MGO board
Heating	Electric heating or project-specific HVAC
Electrical System	Customized according to destination standards
Application	Cold-region accommodation, camps, offices, and temporary housing







B&B & Resort

Create compact guest rooms with bedrooms, private bathrooms, kitchens, panoramic windows, terraces, and customized exterior finishes. Multiple units can be arranged around gardens, pools, mountains, lakes, or other tourism destinations.

Construction Site Dormitory

Configure bunk beds, wardrobes, desks, bathrooms, air conditioning, electrical outlets, and storage areas according to the number of workers.

Modular Office

An open interior can be fitted with workstations, meeting areas, storage, lighting, air conditioning, and communication equipment.

Emergency & Temporary Housing

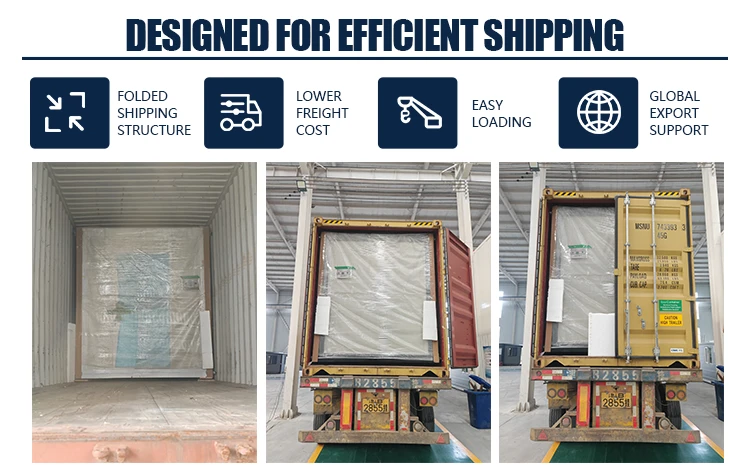

The foldable structure can be transported efficiently and rapidly deployed for temporary accommodation, disaster relief, site support, or other short- and medium-term applications.

Customization Options

Structure

10ft / 20ft / 30ft / 40ft

Customized length and width

Galvanized steel frame

Enhanced structural configuration

Customized foundation connection

Interior

Bedroom

Bathroom

Kitchen

Living room

Office

Storage

Furniture

Appliances

Exterior

RAL colors

Wood-grain finish

Decorative wall panels

Panoramic windows

Sliding glass doors

Canopy

Terrace

Exterior lighting

Building Systems

EPS / Rock Wool / PU / Glass Wool

50 / 75 / 100 mm insulation

Customized electrical standards

Water supply and drainage

Air conditioning

Solar power system

Water heater





Factory Manufacturing and Quality Inspection

Each unit can be prepared according to the confirmed project configuration. Manufacturing and inspection can cover the galvanized steel frame, folding hinges, wall and roof panels, floor structure, doors, windows, electrical components, and sealing materials.

For cold-climate orders, particular attention should be given to insulation thickness, panel connections, folding-joint sealing, window installation, and roof waterproofing. Buyers can request material specifications, insulation documentation, and relevant fire-performance reports before confirming production.





Q1: Can a Cold-proof folding container house be used below -20°C?

Yes, with an appropriate cold-climate package. Wall, roof, and floor insulation, airtightness, heating, and pipe protection should all be specified for the actual temperature conditions.

Q2: What insulation thickness is recommended?

For cold climates, 75–100 mm wall insulation and 100–120 mm roof insulation are useful reference options. More demanding environments may require thicker systems.

Q3: Which insulation material is better for winter?

PU/PIR offers low thermal conductivity, while rock wool provides non-combustible insulation options. The best choice depends on thermal performance, fire requirements, and budget.

Q4: Can the electrical and heating systems be customized?

Yes. Wiring, sockets, distribution boxes, heaters, and other electrical provisions can be configured according to the destination country's standards.

Q5: Can the house be used in snowy regions?

Yes, provided the roof structure, snow-load capacity, foundation, drainage, and installation system are designed for local conditions.
