Mobile Toilet Installation Tutorial
Diagram of mobile toilet installation tutorial
The first step: install the mobile toilet base
1. Place the back panel of the toilet flat on a clean and flat place on the ground
2. Adjust the direction of the base so that the sewage outlet of the base is aligned with the sewage hole on the back panel of the toilet
3. Combine the base with the back panel of the toilet and adjust the alignment
4. Install the base and the fixing slot on the back panel
(drive in the fixing nails after installation)

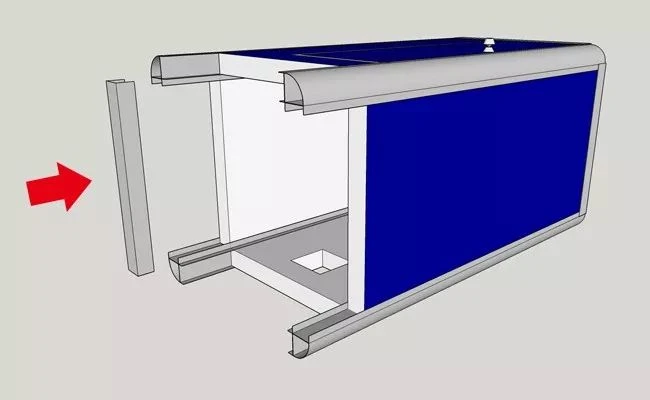

Step 2: Install the right panel of the mobile toilet
1. Put the bottom of the right panel into the card slot
2. Push it in until it is aligned with the base
3. Install the base and the fixing slot on the right panel
(drive in the fixing nail after installation)
Step 3: Install the left panel of the mobile toilet
1. Put the bottom of the left panel into the card slot
2. Push it in until it is aligned with the base
3. Install the base and the fixing slot on the left panel
(drive in the fixing nails after installation)

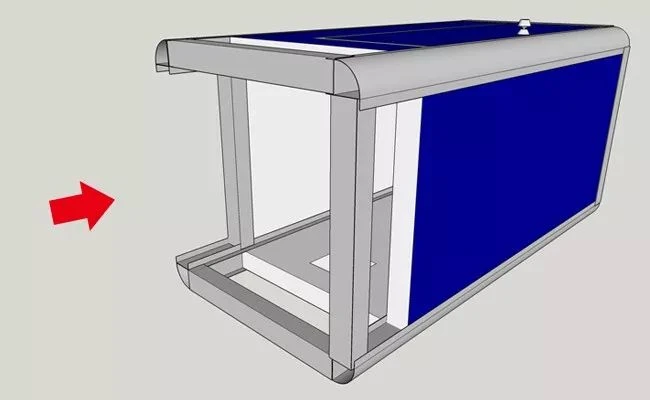

Step 4: Install the front panel of the mobile toilet
1. Put the bottom of the front panel into the card slot
2. Push it in until it is aligned with the base
3. Install the base and the fixing slot of the front panel
(drive in the fixing nails after installation)
Step 5: Install the upper fixing slot
1. Align the fixing slot with the part to be installed
2. Push it in until it is aligned
3. Complete the installation of other fixing slots in turn
(insert the fixing nails after installation)
Step Six: Install Ventilation Louvers
1. Align the ventilation louvers to the installation site
2. Take advantage of the trend
3. Complete the installation of other ventilation louvers in sequence
Step Seven: Install the Top
1. Align the top with the surrounding distance
and drive in the fixing nails to fix it
Step 8: Complete the overall frame installation of the toilet
1. Two people work together to erect the toilet to complete the overall frame installation of the toilet
